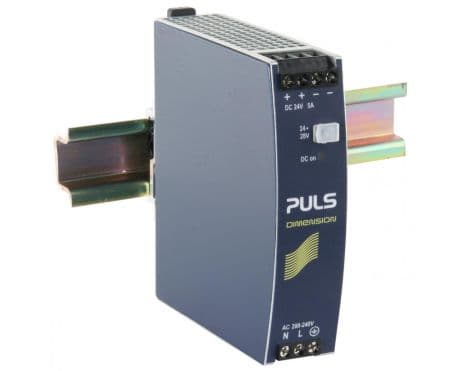

Name: CS5.241
Brand: Puls
Price: 265 USD
Availability: InStock

CS5.241-C1

PULS CS5.241-C1 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and offers various current consumption rates depending on the input voltage: 1.23A at 230Vac, 2A at 120Vac, and 2.33A at 100Vac, with a peak inrush current of 10A across all input voltages. The unit boasts an efficiency of 0.902 at 230Vac, 0.894 at 120Vac, and 0.888 at 100Vac. Its printed circuit board is conformal coated, enhancing its resistance to harsh environments. The dimensions are W32mm x H124mm x D117mm. It features a start-up delay of 740-900ms and rise times of 8ms and 25ms under different load capacitances. Protection functions include output overvoltage protection, active input inrush current limiter, and overload/short-circuit current protection, with capabilities for series/parallel operation for redundancy. The unit can handle back-feeding loads up to 35V without malfunctioning. Power dissipation/losses are 13.2W and 14.5W for 230Vac and 120Vac inputs, respectively, at full output load. The output stage capacitance is 1800µF. Electrical durability varies with conditions, reaching up to 408000 hours at 25°C and 2.5A output with a 230Vac input. The ripple is maintained at 50mVpp. This AC/DC power supply unit, part of the C-Line series, includes a 20% power reserve, DC-OK relay contact output, and screw-clamp connections. It supports a supply voltage range of 85Vac-132Vac / 184Vac-264Vac with auto-selection and features rated currents of 6A and 5A at 24Vdc under different ambient temperatures, with a rated power of 144W at less than 45°C ambient temperature. The output voltage is adjustable between 24Vdc and 28Vdc, with a hold time of 78ms and 80ms at 230Vac and 120Vac inputs, respectively.

Puls

QS20.241-C1

Verified stock: 6

PULS QS20.241-C1 is a power supply unit designed for AC/DC conversion with a 50% power reserve, suitable for DIN rail mounting. It operates within an ambient air temperature range of -25 to +70°C and features a conformal coating for enhanced durability in harsh environments. The unit provides a rated current of 20A at 24Vdc and 17A at 28Vdc, with spring-clamp connections for secure attachment. It supports a supply voltage range of 85Vac-264Vac across various nominal values and 88Vdc-188Vdc for DC input, with specific turn-on and shutdown voltages detailed for both AC and DC inputs. The QS20.241-C1, part of the Q-series, measures 82mm in width, 124mm in height, and 127mm in depth, housed in an aluminium casing. It is designed for use in single-phase or DC networks, offering a rated power of 480W and a short-term power of 720W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, with comprehensive protection functions including overvoltage and overload/short-circuit protection. The unit allows for series or parallel operation to increase output power, with specific conditions for back-feeding loads. Efficiency rates vary with input voltage, and the product features detailed specifications for current consumption, time delay, hold time, power dissipation/losses, electrical durability, ripple, and output stage capacitance.

Puls

CS3.241

Verified stock: 35

PULS CS3.241 is a DIN rail mounting power supply unit encased in an aluminium housing, designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C. The unit has a net width of 32mm and dimensions of W32mm x H124mm x D102mm. It features screw-clamp connections for secure installation and is capable of being powered by either a single-phase AC supply from 85Vac to 264Vac (with specific nominal voltages listed) or a DC supply from 88Vdc to 375Vdc. The CS3.241 delivers a rated current of 3.3A at 24Vdc and 2.7A at 28Vdc, with an adjustable output voltage range of 24Vdc to 28Vdc. It has a rated power of 80W and includes protection functions such as output overvoltage protection, NTC for input inrush current limiting, and overload/short-circuit protection. The unit supports series or parallel operation for redundancy, ensuring higher system availability. It also features a DC-OK relay contact output, indicating the operational status. The power supply's efficiency varies with input voltage, achieving up to 0.898 at 230Vac input. It has a start-up delay of 95ms and a rise time that varies depending on the input and load capacitance. The CS3.241 is designed for electrical durability, with operational lifespans detailed for various conditions, and includes a capacitance of 1450µF at the output stage.

Puls

CS10.241

Verified stock: 3

PULS CS10.241 is a DIN rail mounting power supply unit encased in an aluminium housing, designed for a single-phase network. It operates within an ambient air temperature range of -25 to +70°C and supports a supply voltage range of 85Vac-132Vac / 184Vac-264Vac with auto-selection, featuring an 80Vac turn-ON voltage and a 75Vac shutdown voltage. The unit provides an adjustable output voltage of 24Vdc-28Vdc, with a rated current of 12A at an ambient temperature of less than 45°C and 10A at less than 60°C for 24Vdc, and slightly different ratings for 28Vdc. It has a rated power of 288W at less than 45°C ambient temperature and 240W at less than 60°C. The CS10.241 exhibits a current consumption of 2.23A at 230Vac input for full 24Vdc output, with varying consumption rates at 120Vac and 100Vac inputs, and a peak inrush current of 10A across all input voltages. It features an efficiency of up to 0.916 depending on the input voltage, with dimensions of W60mm x H124mm x D117mm. The unit includes a time delay of 850ms for start-up and offers protection functions such as output overvoltage protection and overload/short-circuit current protection. It supports series/parallel operation for redundancy and is resistant to back-feeding loads up to 35V. The power dissipation/losses are specified for different input conditions, and the electrical durability varies with operating conditions, reaching up to 334000 hours at 25°C with a 5A output at 230Vac input. The output stage capacitance is 7000µF, and the ripple is maintained at 50mVpp. Connection is facilitated through screw-clamp connections, and the design includes a 20% power reserve with a DC-OK relay contact output.

Puls

ML15.121

Verified stock: 4

PULS ML15.121 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is classified as NEC Class 2. This unit provides a rated current of 1.3A at 12Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values listed) and from 88Vdc to 375Vdc, accommodating both single-phase (1AC) or DC networks. The ML15.121 measures 22.5mm in width, 75mm in height, and 91mm in depth, housed in a PC / ABS blend for durability. It delivers an adjustable output voltage between 12Vdc and 15Vdc, with a rated power of 15W. Protection is provided by an NTC (input inrush current limiter), and the unit boasts an efficiency rate of up to 0.83 depending on the input voltage. It has a maximum inrush current consumption of 31A (at 230Vac input), a start-up delay of 780ms, and a rise time of 12ms. Power dissipation is calculated at 3.2W, with an electrical durability of 125,000 hours at +40°C. The output stage features a ripple of 75mVpp and a capacitance of 1650µF.

Puls

CS5.241-S1

Verified stock: 0

PULS CS5.241-S1 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and offers various current consumption rates depending on the input voltage: 1.23A at 230Vac, 2A at 120Vac, and 2.33A at 100Vac, with a peak inrush current of 10A across all input voltages. The unit boasts an efficiency of up to 90.2% at 230Vac input. Its dimensions are W32mm x H124mm x D117mm, and it features a start-up delay between 740-900ms and a rise time of 8ms to 25ms depending on the load capacitance. The CS5.241-S1 provides output overvoltage protection, active input inrush current limiting, and overload/short-circuit protection. It supports series or parallel operation for redundancy, ensuring higher system availability, and can handle back-feeding loads up to 35V without malfunctioning. Power dissipation is 13.2W at full output load with 230Vac input. The output stage capacitance is 1800µF, and the electrical durability ranges from 34,000 to 408,000 hours depending on the operating conditions. Ripple is maintained at 50mVpp. This AC/DC power supply unit, part of the C-Line series, is designed with a 20% power reserve and features a DC-OK relay contact output. It utilizes spring-clamp connections for easy installation and is compatible with a supply voltage range of 85Vac-132Vac / 184Vac-264Vac, automatically selecting the appropriate input. The rated current is 6A at 24Vdc in environments up to 45°C and 5A at 24Vdc up to 60°C, with a rated power of 144W at less than 45°C ambient temperature and 120W at less than 60°C. The output voltage is adjustable between 24Vdc and 28Vdc, with minimal turn-on overshoot, and the hold time is 78ms to 80ms depending on the input voltage. This unit is designed for single-phase networks.

Puls

CS5.244

Verified stock: 0

PULS CS5.244 is a DIN rail mounting power supply unit enclosed in an aluminium housing, designed for a single-phase network. It operates within an ambient air temperature range of -10 to +70°C and consumes 1.16A at 230Vac input for full 24Vdc output, with a peak inrush current of 38A at 230Vac input. The unit boasts an efficiency of 0.902 at 230Vac input and has dimensions of W32mm x H124mm x D117mm. It features a 130ms start-up delay, an 8ms rise time at nominal input with a constant full current load and 0mF load capacitance, and a 25ms rise time under the same conditions with 5mF load capacitance. Protection functions include output overvoltage protection, NTC for input inrush current limiting, and overload/short-circuit protection with a minimum of 10A and a maximum of 14A at load impedance. It supports series/parallel operation for redundancy and is resistant to back-feeding loads up to 35V. Power dissipation/losses are 13.2W at 230Vac input with full output load, and the output stage capacitance is 1800µF. The electrical durability ranges from 42,000 to 408,000 hours depending on the conditions, with a ripple of 50mVpp. This AC/DC power supply unit, part of the C-Line series, includes a 20% power reserve, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage of 180Vac-264Vac, with a rated current of 6A at 24Vdc in ambient temperatures less than 45°C and 5A at 24Vdc in temperatures less than 60°C. The rated power is 144W in ambient temperatures less than 45°C and 120W in temperatures less than 60°C, with an adjustable output voltage of 24Vdc-28Vdc and a 78ms hold time at 230Vac input.

Puls

CS5.243

Verified stock: 0

PULS CS5.243 is a DIN rail mounting power supply unit encased in an aluminium housing, designed for a single-phase network. It operates within an ambient air temperature range of -10 to +70°C and has a net width of 32mm. The unit consumes 1.88A with a 120Vac input and 2.23A with a 100Vac input for a full 24Vdc output, featuring a peak inrush current of 56A at 120Vac and 47A at 100Vac. It boasts an efficiency of 0.9 at 120Vac input and 0.895 at 100Vac input. The dimensions are W32mm x H124mm x D117mm. It has a 120ms start-up delay and a rise time of 8ms under nominal input with a constant full current load without load capacitance, and 25ms with 5mF load capacitance. The CS5.243 includes protection functions such as output overvoltage protection, NTC for input inrush current limiting, and overload/short-circuit protection. It supports series or parallel operation for redundancy and is resistant to back-feeding loads up to 35V. Power dissipation is 13.5W at full output load with a 120Vac input, and the output stage capacitance is 1800µF. Its electrical durability ranges from 27,000 to 363,000 hours depending on the conditions. The ripple is 50mVpp, and it features a 20% power reserve. Part of the C-Line series, it includes a DC-OK relay contact output and screw-clamp connections. The supply voltage ranges from 90Vac to 132Vac, with a rated current of 6A at 24Vdc under 45°C and a rated power of 144W under 45°C. The output voltage is adjustable between 24Vdc and 28Vdc, with a 400mV turn-ON overshoot and a hold time of 78ms at 120Vac input.

Puls
